ASRock B360 Pro4 + i3-8100 3.6 GHz + 4GB2400 54170863 - $350

ASRock B360 Pro4 + i3-8100 3.6 GHz + 4GB DISIPADAS ##PHONE## (300 Series)
Intel B360 HDMI SATA 6Gb/s USB 3.1 ATX

PRECIO: 350CUC
NOMBRE:
TELEFONO:

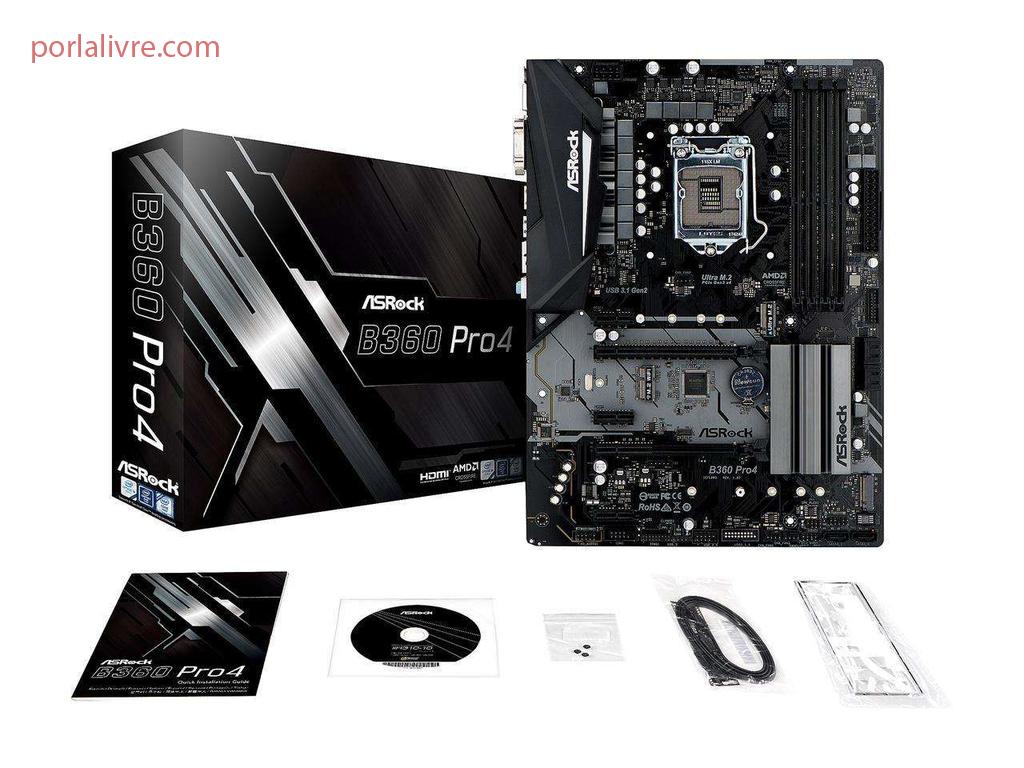

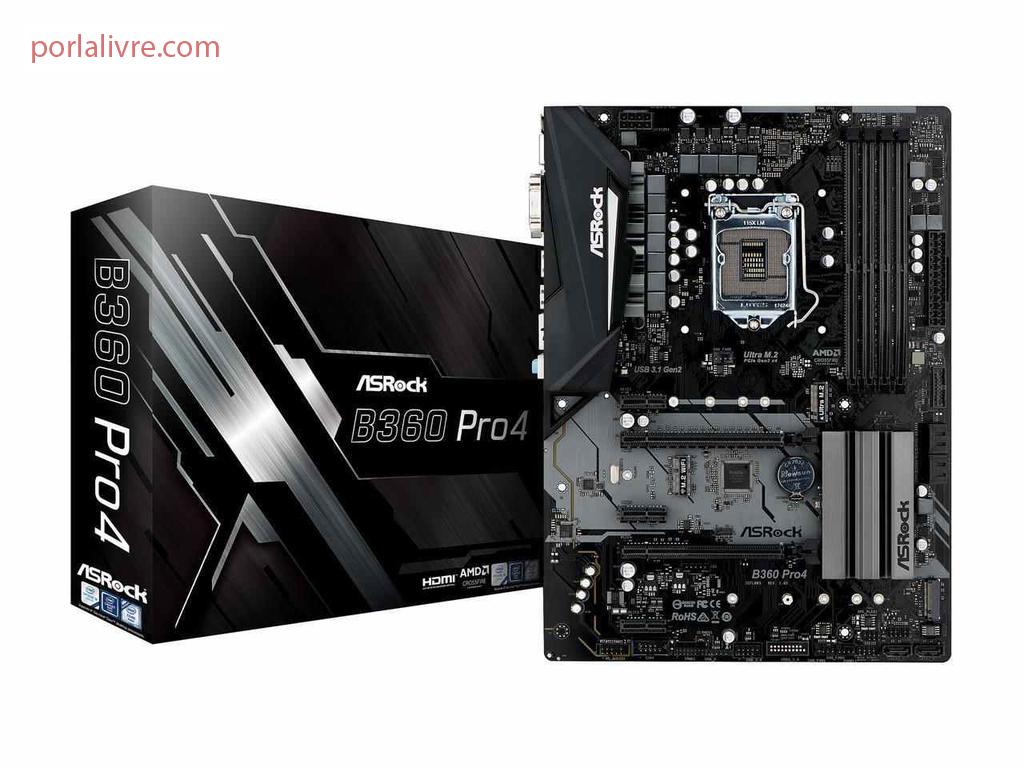

ASRock B360 Pro4 150CUC

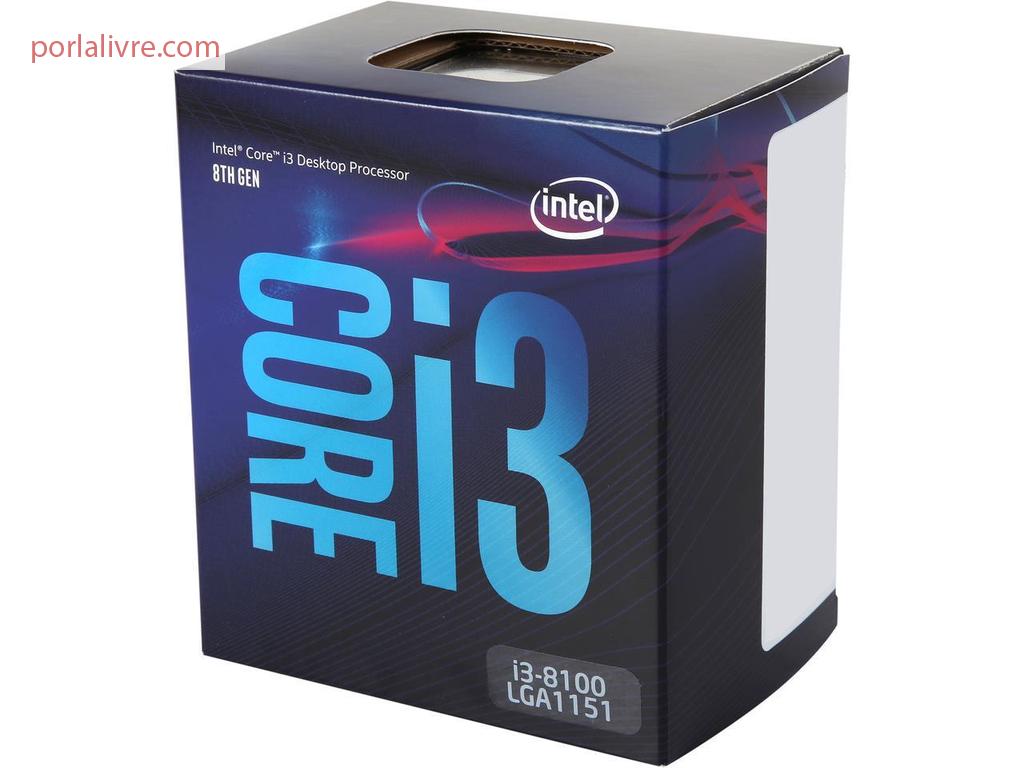

Intel i3-8100 3.6 GHz 150CUC

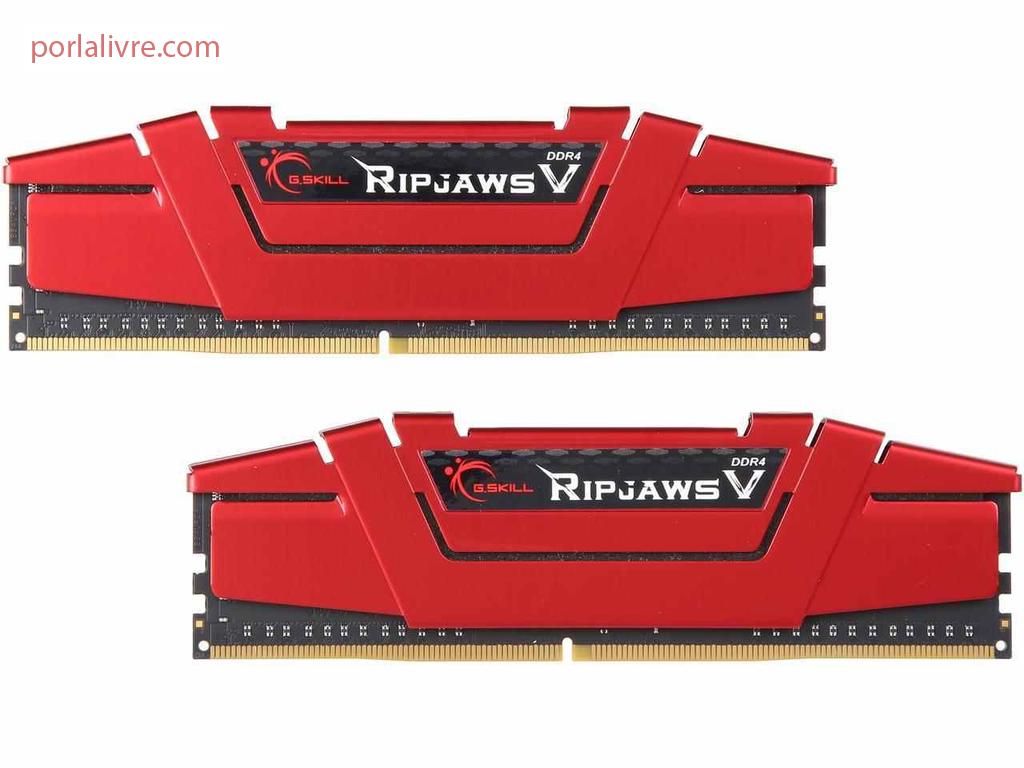

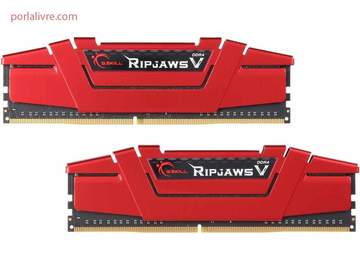

4GB@2400 DISIPADAS 50CUC

ESPECIFICACIONES ASRock B360 Pro4

Model
Brand ASRock
Model B360 Pro4

Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU Type Supports 8th Generation Intel Core Processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies Turbo Boost Technology 2.0

Chipsets
Chipset Intel B360

Onboard Video Onboard Video Chipset
* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port

Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 2666/ 2400/ 2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel

Expansion Slots
PCI Express 3.0 x16 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16
(PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))
* If PCIE3 or PCIE5 is occupied, PCIE4 will downgrade to x2 mode
* Supports NVMe SSD as boot disks
PCI Express x1 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
and Intel CNVi (Integrated Wi-Fi/BT)

Storage Devices
SATA 6Gb/s 6 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot
Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.2 1 x Ultra M.2 Socket (M2_1), supports M Key type
2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s)**
** Supports Intel Optane Technology (M2_1 only)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit

Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps

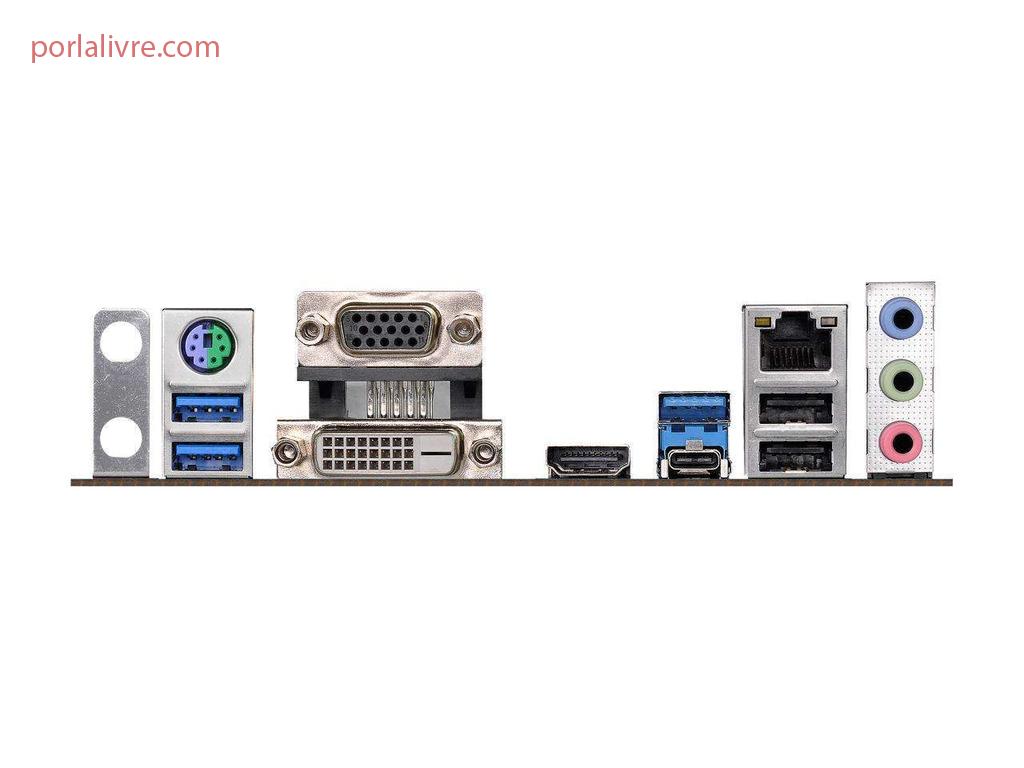

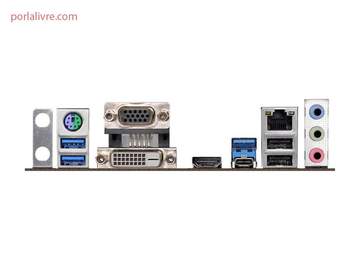

Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub Port
1 x DVI-D Port
HDMI 1 x HDMI
RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1 1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD
Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.0 2 x USB 2.0 Ports (Supports ESD Protection)
Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone
Antenna Connectors 2 x Antenna Ports

Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports
ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)

Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.8"
Power Pin 1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
